References

Our products in use all over the world

Snap-in BOX flex for the Evangelical-Reformed parish in Gontenschwil – Hauser Gastro AG

Rethinking Cooking: With the Snap-in BOX flex, state-of-the-art induction technology enters the kitchen. The company Hauser Gastro AG was responsible for the kitchen renovation and chose our semi-professional Snap-in BOX induction system. . It not only brings efficiency and safety, but also delivers a completely new cooking experience to everyday life.


Thanks to the Cooking Everywhere technology, the entire surface can be used flexibly – no matter where the pot is placed. Intelligent algorithms automatically adjust the power output to the quality of the cookware, ensuring maximum efficiency. At the same time, advanced safety features such as overheating protection, heat sink monitoring and pan detection guarantee maximum reliability – a crucial advantage for daily use.

The CERAN® matte line from SCHOTT enhances the kitchen with its deep black, velvety matte surface, radiating calm elegance while offering tangible advantages in everyday life. The innovative coating significantly reduces fingerprints and scratches, ensuring a consistently refined appearance even with intensive use – quality features that perfectly embody the philosophy of the Snap-in BOX flex: durable, efficient and aesthetically refined.

Schlanders, South Tyrol – Hospital – Gastroservice

Since mid-March 2022, the hospital in Schlanders has no longer been cooking on large cast-iron hobs. The company Gastroservice GmbH from Eppan was commissioned to improve the energy efficiency of the old Ambach cooker block. Harald Meraner decided to replace the old hotplates with FLUXRON induction systems. In order to support a smooth conversion in the best possible way, FLUXRON then adapted the dimensions of the glass ceramic to fit the existing reception of the former cast iron hotplates. The Gastroservice installation team only had to extend the substructure to accommodate the Built-out BAX slide inductors, which was feasible with manageable effort.

Chef Lukas Oberhofer is enthusiastic about the FLUXRON induction solution. He particularly appreciates the flush installation, the fast heating times and the significantly improved room climate.

The management of the hospital calculates that with the future savings in energy costs, the investment will be completely amortised in just two years.

Ubud, Bali – Aperitif restaurant & bar – Nayati

The Fine Dining Apéritif Restaurant in Ubud, Bali has also been using the latest induction systems from FLUXRON’s . The restaurateur Nic Vanderbeeken uses the “a la carte” induction systems with high-resolution cooking step control as well as with degree-precise temperature control and is enthusiastic. The internationally active kitchen manufacturer Nayati installed the Built-out REX flex induction solution with the induction generators, separated from the 4x2kW surface coils and 8kW point coils as well as the raised display displays, in a separate generator compartment in its Gourmet Master Cooking Suite. An all-round successful stove system.

Cologne, Germany – La Fonda Restaurant-Terrasse-Bar – Pro-Gastro

Since summer 2018, the modern induction systems from FLUXRON have been in operation at La Fonda, Cologne. The company Pro-Gastro GmbH from Euskirchen has installed the induction system Built-out REX lift, generators in the electric compartment with coil lifts under the CERAN glass. The surface and point coils are used via the high-resolution cooking stage control as well as via the degree-precise temperature control with external core temperature sensors. A product solution that exactly corresponds to the required application area.

Depending on the requirements, the following CERAN glass dimensions are supported:



Single cooking zone:

  • Standard: 325mm x 325mm / 360mm x 360mm / 388mm x 388mm / 430mm x 430mm


Double cooking zone:

  • Standard: 530mm x 325mm / 580mm x 360mm / 650mm x 325mm / 720mm x 360mm / 776mm x 388mm
  • Special: 652mm x 356mm / 670mm x 370mm / 788mm x 388mm


Four times cooking zone:

  • Standard: 650mm x 650mm / 720mm x 720mm / 776mm x 776mm
  • Special: 740mm x 840mm / 780mm x 780mm

Six times cooking zone:

  • Standard: 975mm x 650mm
  • Special: 1000mm x 800mm


Special glasses:

  • slider: 430mm x 360mm / 560mm x 360mm
  • powershift: 300mm x 210mm / 388mm x 290mm
  • inline: 788mm x 230mm


WOK Cuvettes:

  • standard: 311mm / 400mm
  • special: 500mm

light – in lightweight construction
No assembly aids are provided by the manufacturer. To attach the coil module, mounting clips are mounted and screwed to the threaded bolts that are available on the building side.

lift – with lifting system
Using a patented lifting system, the coils can be pushed up to the CERAN glass after the device has been installed and pressed via the integrated spring system.

flex – the standard
The coils are mounted on the additional coil carrier. The coil carrier itself supports various types of assembly, which can be used on the construction side.

frame – with mounting frame
The coil carriers can be mounted on the existing bolt system on the additional glass carrier. The glass carrier itself is mounted sideways or from the bottom to the stove surface adjustable in height.

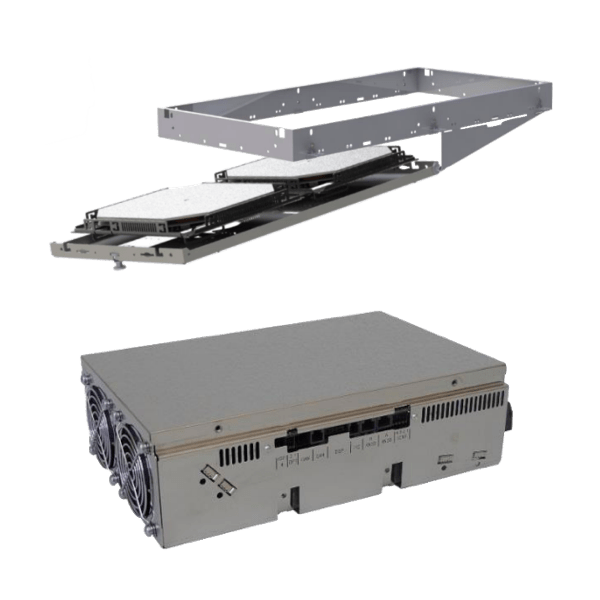

slide – with rail mounting frame
Thanks to the additional rails attached to the glass carrier, the coil carriers can be inserted from the front over the aperture without any effort

BAX Generators are specially designed for installation directly under the hob . The drip water safe housing with air intake via grease filter from below.

REX Generators are specially designed for installation in electrical cabinets . They can be arranged directly next to each other and are available as a single generator as well as a double generator.

BOX Generators are specially designed for installation in tabletop units . Thanks to the open, elongated design and the radial ventilation system, they have a very small height.

NOX Generators are specially designed for holding systems . The small height limits the performance to 3500W.

The X-Class induction is equipped with the usual standard functions for professional use. These can be easily adapted to customer needs using the FLUXRON APP via Bluetooth.

The S-Class induction guarantees maximum functionality, double-sided operation, energy management, performance optimisation and much more. All functions can also be configured via Bluetooth, as with the X-Class.

The I-Class induction is ideal for remote generator installation. All signals from the cooking zone are collected in an interface and transmitted digitally via a data line to the remote generator, which greatly simplifies installation.

Modular induction systems (-out)

Fit-out devices are modular induction hobs. The CERAN glass and the glass carrier are flush to the stove surface via adjusting screws. The coil system itself is simply used in the glass carrier. However, the induction generator is installed separately in a generator compartment or remotely in the adjoining room.

Built-out devices are modular induction solutions whose coils are installed directly under a CERAN glass. Depending on the application, different mounting methods are available for the coil systems. The induction generator itself is installed separately in a generator compartment or set off in the adjoining room.

Drop-out devices are also modular induction cookers. The visible glass frame with the CERAN glass is inserted from above into existing recesses and stands up slightly on the stove surface. The coil system itself is simply fixed in the glass frame. However, the induction generator is installed separately in a generator compartment or remotely in the adjoining room.

Compact induction systems (-in)

Fit-in devices are compact induction solutions. The CERAN glass and the glass carrier are flush to the stove surface via adjusting screws. The induction or coil system itself is easily used with the glass carrier.

Built-in devices are compact induction solutions that are installed directly under the CERAN glass. Depending on the application, different housing and assembly technology is used.

Drop-in devices are inserted into a recess from above. The visible glass frame stands up slightly on the stove surface. The induction unit is either firmly installed in the housing, can be used from below or can be retracted from the front.

Mobile induction systems (-top)

Table-top devices are ideal for mobile use. They are connected directly to a power outlet and are immediately ready for operation.
